Advanced Filter Two Dimensional Statistics

2 min read

Two Dimensional Statistics crosses two breakdowns at once (work items by component across priority, say) as a matrix with row totals, column totals and a grand total.

This is the gadget for the questions a single breakdown can’t answer: not “how many bugs per team”, but “how many bugs per team, split by severity”.

i

You’ll need edit rights on the dashboard and an advanced filter. See Create your first advanced filter.

Add it to a dashboard #

Open the dashboard, select Edit, then Add gadget, and search for Advanced Filter Two Dimensional Statistics.
Pick the Advanced filter.
Choose the Rows and the Columns. Each can be a field, a smart rule, a date period or a time series, chosen independently.
Choose your Values (up to ten). One shows at a time, and viewers switch between them.
Select Save.

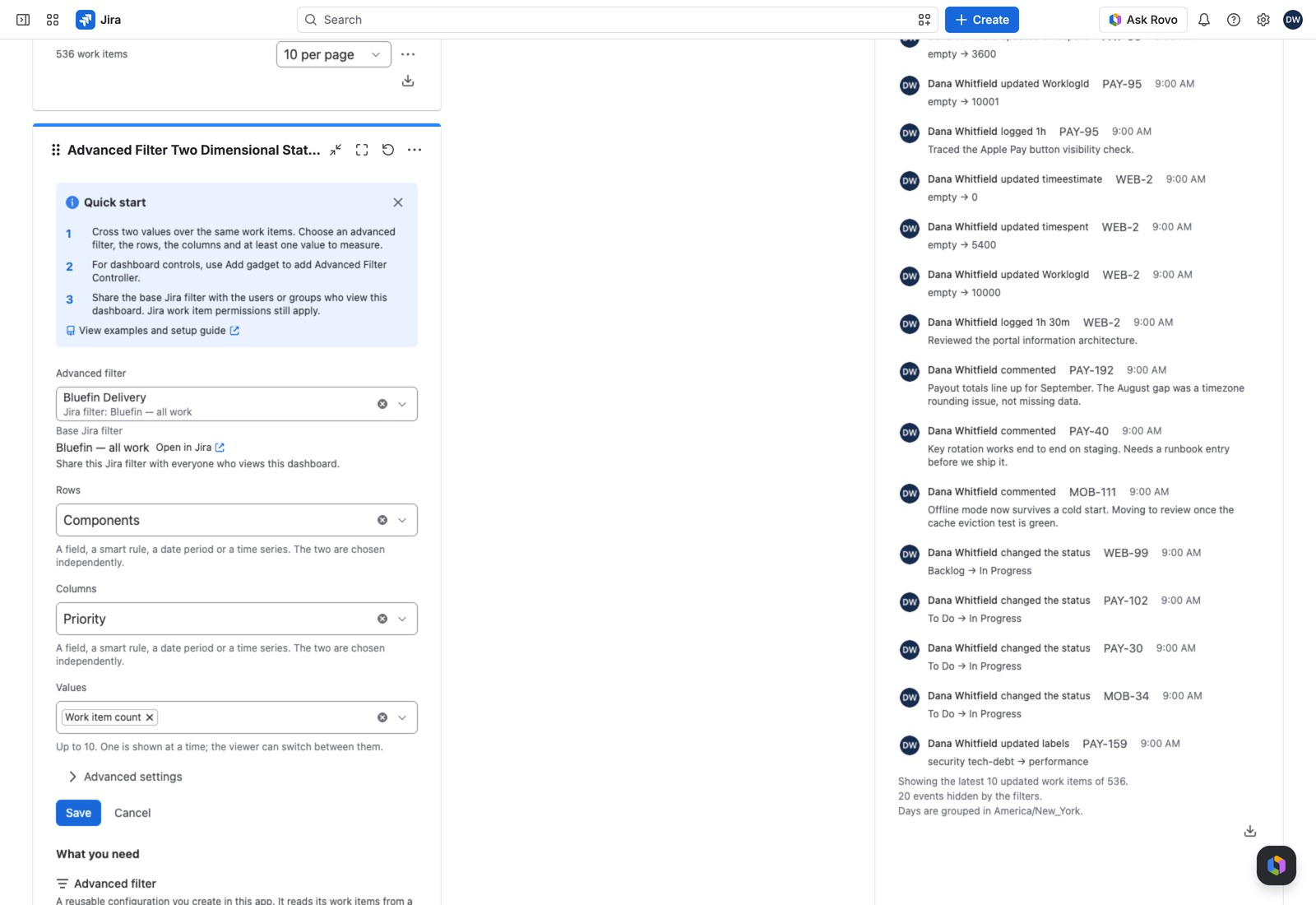

The configuration form with its Rows, Columns and Values fields filled in. — Two breakdowns, chosen independently, and the values the matrix measures.

Worth knowing under Advanced settings #

Setting	What it does
Order both axes by	The breakdown’s own order, the group name, or the group’s own total (ascending or descending). One ordering, applied to both axes
Rows shown	Up to 50, 15 by default
Columns shown	Up to 20, 8 by default
Show the None row and column	Work items with no value on that axis. On by default. Hiding them changes no total
Show totals	Row totals, column totals and the grand total. On by default
Offer shares of the column total	Adds a switch showing each cell as a share of its column
Opens as	Table, Clustered bars or Stacked bars
Working query	Optional JQL narrowing this gadget only

Groups past the display limits aren’t drawn. No total changes, so the numbers stay honest even on a small dashboard tile.

What your viewers can do #

Three things belong to the viewer and are never saved back to your configuration:

Which value is on screen, if you configured several.
Swap rows and columns: transposes the matrix, which is how a wide table fits a narrow dashboard column.
Measurements or shares, if you offered the switch.

Every cell with work items behind it opens them in Jira’s own search (including the total column).

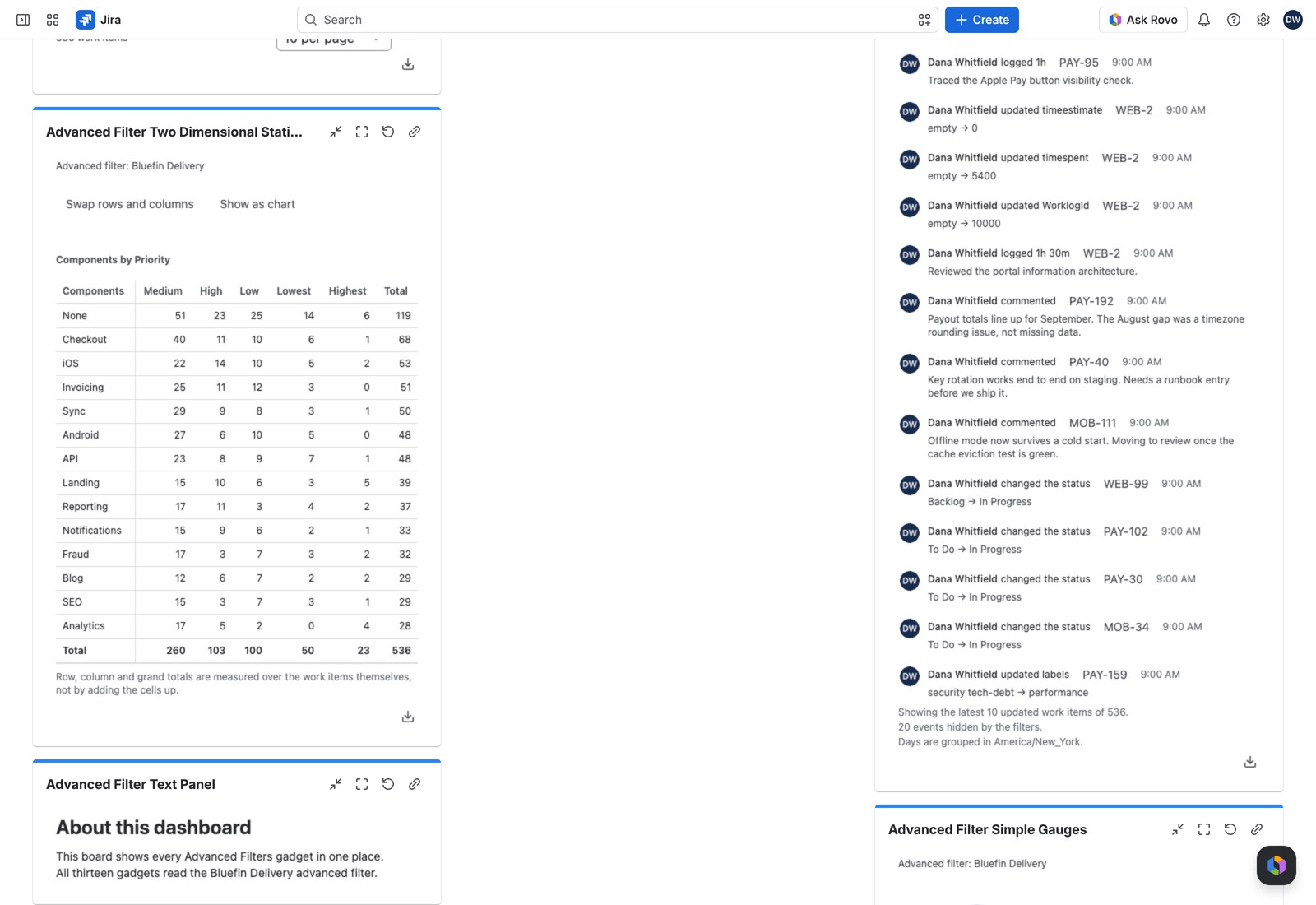

The matrix as a table, with a total column, a total row and the grand total in the corner. — Rows, columns, and the three kinds of total.

Totals you can trust #

i

Every total is measured independently, never added up from the cells. With an overlapping breakdown a work item can land in two cells, so the row, column and grand totals count the work items themselves rather than double-counting. The gadget flags this when it applies.

The same care applies to stacked bars. If your column breakdown can put one work item in more than one column, the chart quietly falls back to clustered bars and explains why: stacking them would imply a whole that doesn’t exist.

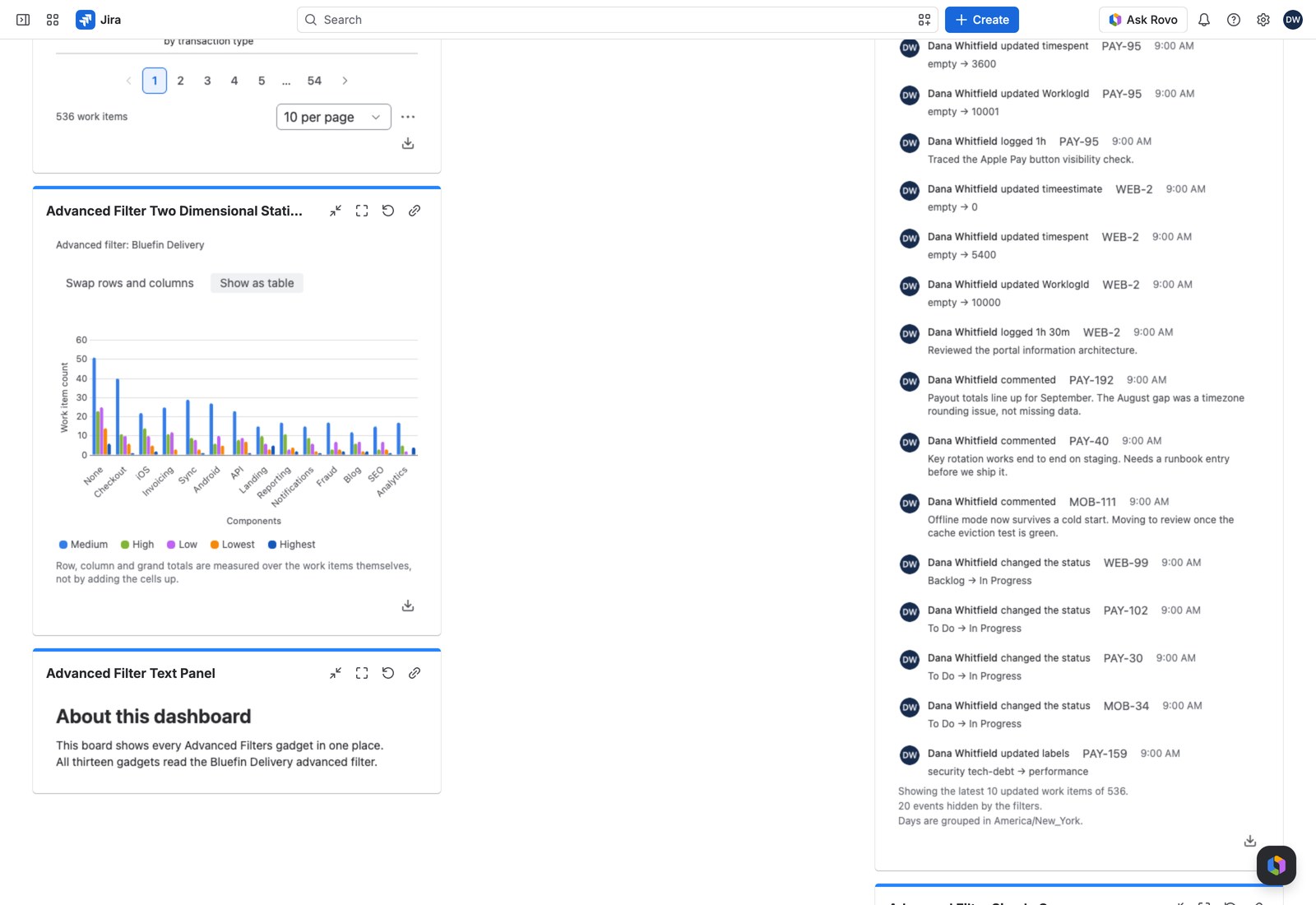

Bars drawn side by side, with a note underneath explaining why they are not stacked. — Clustered bars instead of a misleading stack, with the reason given.

With the Controller #

An Advanced Filter Controller on the same filter changes what every cell measures.

Exporting #

CSV, Excel or PDF of the matrix, with its row, column and grand totals. Each keeps whatever axis order and presentation is on screen. On screen and in the PDF, a custom value or ratio reads at its definition’s decimals; CSV and Excel keep the full value, Excel showing those decimals.

If something looks off #

“Nothing to chart”: no work item contributed to this breakdown.
“This matrix cannot be built”: one of the two breakdowns is no longer available on the filter, so edit the gadget and pick another.
“1 value could not be read, so it matches no work items.”: the value is never applied in part, so the matrix counts nothing until you select Remove what cannot be applied in the Controller’s warning, or in this one when no Controller shares the filter.
